Emotion service

The emotion service provides the API's ability to call the device's "emotions". As an emotion service access agent, EmotionManager provides the main API of the emotion service, which can be obtained through the RobotContext object.

EmotionManager emotionManager = aRobotContext.getSystemService(EmotionManager.SERVICE);

Display emotions

When the device is required to display emotions such as "happy", "angry", "sad", and "laugh", like humans do, it can be achieved by displaying the emotions.

promise /* [2] */ = emotionManager.express(Uri.parse("emotion://va/happy") /* [1] */)
    .progress(new ProgressCallback<ExpressingProgress>() {
        @Override
        public void onProgress(ExpressingProgress expressingProgress /* [3] */) {
            // Callback the display process of the emotions
        }
    })
    .done(new DoneCallback<Void>() {
        @Override
        public void onDone(Void aVoid) {
            // Callback the emotions finish displaying
        }
    })
    .fail(new FailCallback<EmotionException>() {
        @Override
        public void onFail(EmotionException e) {
            // Callback the emotion display failed
        }
    });

[1]The unique identification of the emotion to be displayed.

[2]Return the asynchronous object that is waiting to display progress and results. Through the object, you can wait or monitor the progress and results, or cancel the display process. See Promise for specific usage.

[3]The ExpressingProgress object of the asynchronous callback describes the progress information of the emotion display, including:

Attribute getter	Descriptions
ExpressingProgress.progress	Progress information began: start of display ended: end of display

By specifying options, you can adjust the action of the emotion display.

ExpressingOption /* [1] */ option = new ExpressingOption.Builder(
    Uri.parse("emotion://va/happy")).build();
promise = emotionManager.express(option);

[1] The ExpressingOption object is constructed using ExpressingOption.Builder. The instructions are as follows:

Methods	Descriptions	Default value
Builder.constructor(uri)	The URI of the emotion to be displayed must be imported during construction
Builder.setSticky(sticky)	Whether the display process is allowed to be interrupted true: cannot be interrupted	false
Builder.setLoops(loops)	Number of loop display 0: unlimited	0
Builder.setExtension(extension)	Customized parameters	JsonObjectString.EMPTY_OBJECT

If you need the device to cry and laugh like a human, you can specify multiple options.

ExpressingOption option1 = new ExpressingOption.Builder(
    Uri.parse("emotion://va/cry")).build();
ExpressingOption option2 = new ExpressingOption.Builder(
    Uri.parse("emotion://va/happy")).build();
promise = emotionManager.expressSerially(option1, option2 /* [1] */);

[1] The set of emotions to be displayed can also be written as follows:

List<ExpressingOption> optionList = new ArrayList<>();
optionList.add(option1);
optionList.add(option2);
promise = emotionManager.expressSerially(optionList);

If you want to know the emotion that is currently displayed, you can use the following code.

emotionManager.getExpressing();

The unique identifier of the emotion is returned.

If you want to know if there are any emotions on display, you can use the following code.

emotionManager.isExpressing();

If true is returned, it means that there are emotions on display.

Close the emotion

If you want the device to return to the normal interactive interface and no longer display emotions, use the following code.

emotionManager.dismiss();

Emotion list

Science style

name	id
daze	techface_daze
smile	techface_smile
happy	techface_happy
love	techface_love
shy	techface_shy
music	techface_music
speak	techface_speak
upset	techface_upset
amazing	techface_amazing
naughty	techface_naughty
grin	techface_grin
wronged	techface_wronged
proud	techface_proud
default	techface_default
data	techface_data
monitor	techface_monitor
standby	techface_standby
doubt	techface_doubt

Lovely style

name	id
daze	face_daze
happy	face_happy
love	face_love
shy	face_shy
music	face_music
speak	face_speak
upset	face_upset
amazing	face_amazing
naughty	face_naughty
grin	face_grin
wronged	face_wronged
proud	face_proud
smile	face_smile
default	face_default

Little star style

name	id
proud	littlestar_proud
daze	littlestar_daze
sleepy	littlestar_sleepy
awkward	littlestar_embarrassed
shy	littlestar_shy
amazing	littlestar_amazing
happy	littlestar_happy
naughty	littlestar_naughty
smile	littlestar_smile
like	littlestar_love

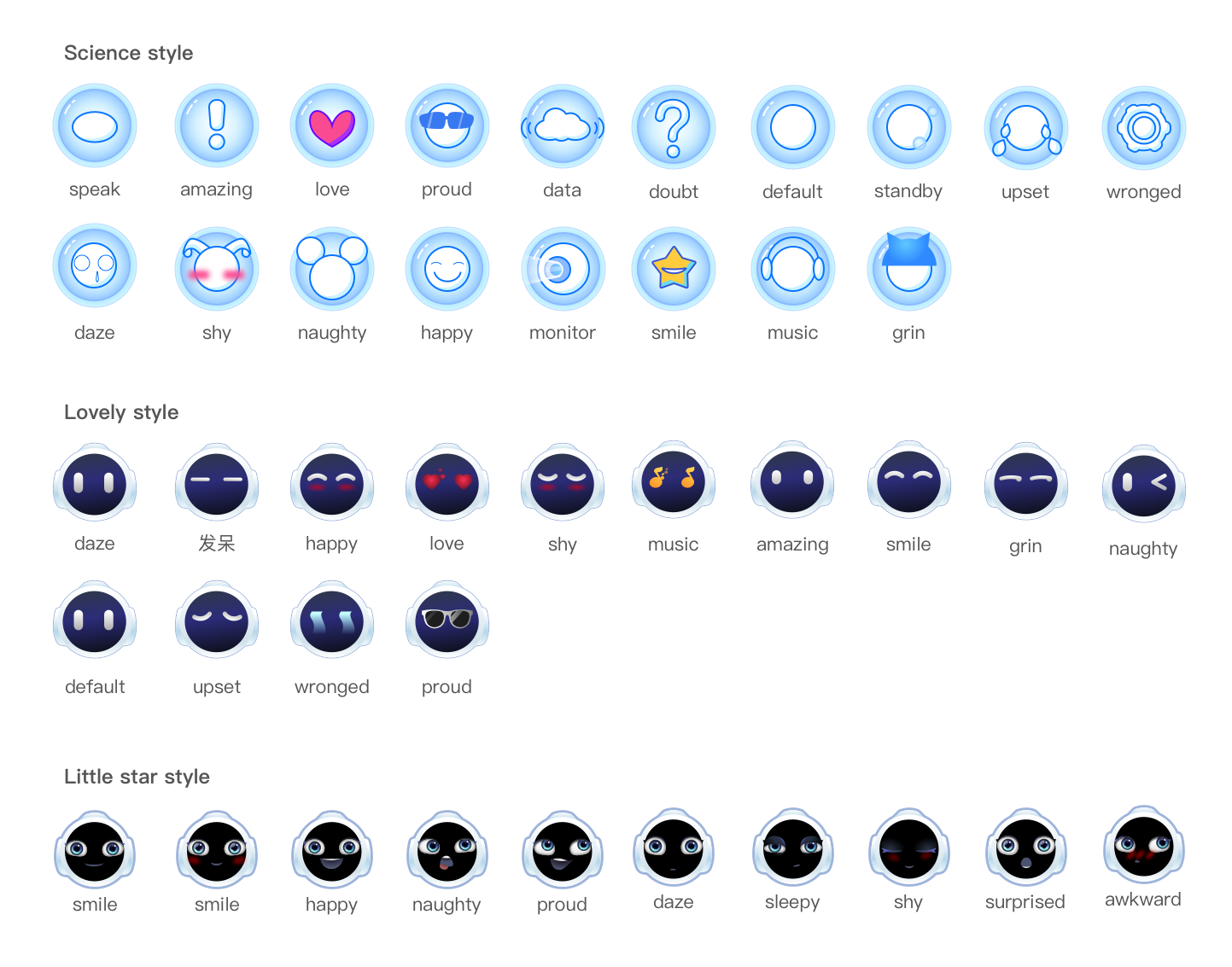

Emotion picture
